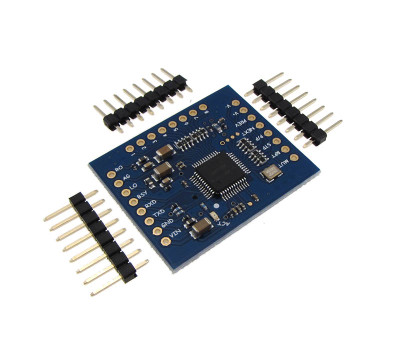

Embedded Micro SD Card MP3 WAV APE Audio Player Module

The new design AU5016 is a fully integrated SD/SDHC MP3/WAV player module with the ability to decode MPEG Layer-3 (MP3) audio file and lossless WAV file. It can be controlled with any microcontroller via (RS232)-TTL interface. It contains a high-performance DSP process core and a high-quality stereo DAC that providing high sound quality output. The AU5016 is capable of driving a stereo earphone directly without the need of an amplifier.

Features:

       High performance 32bit CPU

       High quality on-chip stereo DAC

       Suppors MicroSD/SDHC memory card

       Supports MP3 and lossless WAV/APE format

       External IO Control

       Stereo Audio output

       Ultra-low background noise

       Compact size

PCB Dimensions: 34mm x 28mm

Documents:

• Datasheet
